tcl_c++: an Interface Between tcl and c++

This software allows a c++ programmer to create a tcl interface to c++ objects with minimal coding overhead (basically one line per member function). The name of the class becomes a tcl procedure (with or without arguments depending on what constructors are defined) that calls the appropriate constructor and creates a tcl procedure to interface to the newly created object. This tcl procedure uses its first argument to decide which member function of the object to call. The value of variables and constants are also available to tcl programs. Multiple inheritance is supported.

To use tcl_c++ you must create a file called myClassTCL.tcl for each c++ class, for example:

startClass  myClass
constructor
constructor int double
memberFunction void member
memberFunction int integer
memberFunction int integerArgument int
memberFunction myClass* pointerArgumentReturn myClass*
memberFunction myClass& referenceArgumentReturn myClass&
memberFunction void twoArguments int char*
memberFunction int* handlePointers double*
memberConstant double  doubleConstant
memberVariable  int  integerVariable
destructorCommand delete
baseClass baseClass1
baseClass baseClass2
endClass

Note: only the parts of the class that should be available to tcl are put in the file.

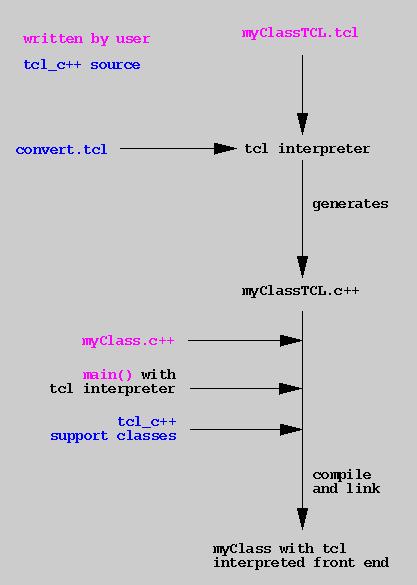

This file is actually a tcl program. The tcl procedures startClass, constructor, memberFunction and so forth are defined in a file called convert.tcl. Now for the explanations:

• startClass myClass -- the class is named "myClass". This must always come first.
• constructor -- there is a constructor with no arguments. If no constructors are specified, this default constructor is created unless the tcl variable abstractClass is non-zero. In this case no constructors are allowed.
• constructor int double -- there is a constructor with two arguments, an int and a double. One might say: "set object [myClass 1 2.4]". Note that $object will be a number -- specifically the value of a pointer pointing to the object created. $object will also be a tcl procedure whose first argument will determine which member function, constant, or variable will be accessed.
• memberFunction void member -- this creates an interface to a member function named "member" with no arguments and no return value. Note that at present member function dispatch is on name and number of arguments only -- not type. This could be fixed by changing convert.tcl output to optionally look for lists containing the type followed by the value each time a member function is called.
• memberFunction int integerFunction -- this member function returns an integer.
• memberFunction int integerArgument int -- this one also takes an integer as an argument.
• memberFunction myClass* pointerArgumentReturn myClass* -- this function takes a pointer as an argument and returns a pointer.
• memberFunction myClass& referenceArgumentReturn myClass& -- this one handles reference arguments and return values (the return value is just a number that is the address of the returned object). This only works if myClass is derived from the tcl_c++ support class aTclCapableClass. aTclCapableClass doesn't do anything or allocate any memory, but it's necessary as a base class so the tcl_c++ generated code handles types properly.
• memberFunction void twoArguments int char* -- this member function takes two arguments. Note that char* has no spaces. This is necessary to have tcl consider it one argument. Alternatively, one could use "char *" (enclose it in double quotes).
• memberFunction int* handlePointers double* -- this function takes a pointer to a double as an argument (probably returned by a memberFunction) and returns a pointer to an integer. As far as tcl is concerned, the return value and argument are simply numbers. C++ knows that these numbers are pointer values.
• memberConstant double doubleConstant -- this creates an interface so tcl can get the value of a constant. The code might look like "set value [$object doubleConstant]". This works for static and non-static member constants.
• memberVariable int integerVariable -- same as memberConstant. It will only return the value. To set the value you must write a member function. This works for static and non-static member variables.
• destructorCommand delete -- "$object delete" will call the myClass destructor and tclDeleteCommand (see below). This is not well tested.
• baseClass baseClass1 -- myClass has a base class accessible from tcl.
• baseClass baseClass2 -- myClass has a second base class accessible from tcl. Member functions from baseClass1 will be used if there's a name conflict because baseClass1 is first. At present, the baseClass calls must come at the end.
• endClass -- signals the end of the class interfaces. This must always come last.

Note the following issues:

• tcl_c++ assumes that there is an include file called myClass.hh. If not, use "set includeFileName actual-include-file-name" before the startClass call. If includeFileName == "none", no class specific #include will be in the c++ file.
• To put custom code in the generated c++ file, use "puts" anywhere in your myClassTCL.tcl file.
• It's best if the classes you interface to are derived from aTclCapableClass. aTclCapableClass has no members so it should cause no problems as a base class. If you don't use aTclCapableClass as a base class, you won't be able to pass or return references to your class (pointers should work though). Note that classes without aTclCapableClass as a base class haven't been well tested.
• Pointers to most pre-defined types will have tcl names equal to their address. Char* is an exception, these are always handled as constant strings.
• Every class automatically has a tcl "member function" called tclDeleteCommand. When this is called, the tcl command created for the object will be replaced with an error message. This allows tcl to forget about objects.
• If a member function returns an object that does not have a tcl command, the tcl program won't be able to access this object's members. This can be fixed by using the automatically generated tcl procedure "cast2myClass" with one argument -- a pointer to the object (presumably returned by a member function). cast2myClass creates a tcl procedure to interface to the object, which is assumed to be an instance of myClass. Note that there is no type checking.

Known problems:

• Const has never been tested in any context.
• Unsigned anything and long double arguments and return values aren't supported.
• Operators and non-member functions, constants and variables aren't supported.
• tcl_c++ doesn't check to see if input numbers are really numbers.
• tcl_c++ isn't thread compatible.
• The build generates a number of unimportant c++ error messages.
• tcl_c++ puts a few name constraints on your c++ software. Namely, there can be no class members named aTclCommand_argument followed by a number. Also, there may be no functions called _myClass__handleMemberFunctionsTclCommand. These restrictions shouldn't be too severe.
• There is one constraint on the names of tcl procedures you can use, cast2myClass is automatically created for each class.
• Memory management issues haven't been carefully address or tested. Only the c++ delete operator is directly supported, not reference counting schemes. One can call a member function and then use tclDeleteCommand though.
• Tcl_c++ has only been tested on IRIX 5.3.

I had hoped to distribute the code on the WWW, but it's not quite ready for wide distribution -- especially the regression test. If you are interested in using tcl_c++, send email to globus@nas.nasa.gov.

To the NanoDesign paper.

Author: Al Globus
